One Row Corn Picker | Maize Harvester
| Model | TZ-265 |
| Size | 1820*800*1190mm |
| Weight | 265kg |
| Working Speed | 0.75-1.44km/h |
| Fuel Consumption of Unit Working Area | ≤10kg/h㎡ |
| Hours of Productivity | 0.067-0.1 hectare/h |
| Numbers of Blades | 10 |
| Power | air-cooled diesel engine |
| Stubble Height | 8-15 cm |
| Crushing Rate | ＞98% |
You can now ask our project managers for technical details

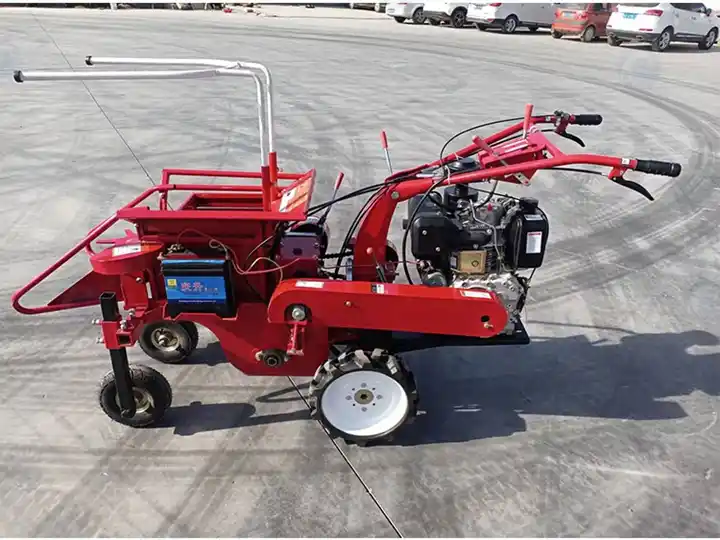

The one row corn picker is a compact and flexible small-scale machine designed specifically for medium and small fields, hilly areas, and family farms. It can complete corn picking, husking, and collecting in one pass, greatly improving harvesting efficiency compared to manual labor. It is an ideal choice for farmers seeking mechanized corn harvesting.
We offer two models: TZ-125 and TZ-265, with a working capacity of 0.06 hectares per hour, powered by 188/192/195L air-cooled diesel engines.
This type of one row corn harvester is popular among customers in many countries, including Brazil, Tanzania, Mexico, Indonesia, and Vietnam etc.
What are the characteristics of one row corn picker?
Compact Design, Small Body Size
- With a machine size of only 1820×800×1190mm, it is ideal for narrow fields, irregular ridges, and small plots.
- Easy to maneuver in tight spaces, especially in hilly or mountainous regions where larger machines cannot operate.
Multi-functional, High Automation
- This harvester performs corn picking, husking, conveying, and collecting in a single operation.
- Reduces labor cost significantly and improves overall harvesting efficiency—no need for secondary manual husking.
Efficient Cutting System with 10 Blades
- Equipped with 10 durable, high-speed blades that can handle various corn densities.
- Ensures clean cutting with minimal loss or missed stalks, enhancing productivity and output quality.
Low Fuel Consumption, Energy Efficient
- Fuel consumption is ≤10 kg per hour per hectare, thanks to its lightweight and efficient design.
- Ideal for small farms or individual users looking to save on fuel costs while maintaining high productivity.
Adaptable to Complex Terrain
- With a total weight of only 265 kg and a low center of gravity, the machine remains stable even on uneven land.
- Perfect for use in mountainous or sloped fields where large-scale harvesters are unsuitable.
Easy to Operate – Single Person Operation
- Simple and intuitive controls; adjustable handle for operator comfort.
- No special training required—suitable even for older farmers or female operators.
Easy Maintenance, Low Failure Rate
- A Simple mechanical structure makes cleaning and maintenance easy, mainly checking belts, oiling parts, and cleaning blades.
- Low maintenance costs and long service life, ensuring reliability in the field.
Flexible Matching Options
- Can be towed by a small tractor or modified for self-propelled operation with an engine.
- Adaptable to various farm sizes and power configurations based on user needs.
Structure of one row corn picker
The structure of single row maize harvester is compact. It is mainly composed of a frame, hopper, engine, wheel, height-adjustable handle, traveling clutch, roller, and crushing device.
Parameters of corn harvester
TZ-265
| Model | TZ-265 |
| Size | 1820*800*1190mm |
| Weight | 265kg |
| Working Speed | 0.75-1.44km/h |
| Fuel Consumption of Unit Working Area | ≤10kg/hm² |
| Hours of Productivity | 0.067-0.1 hectare/h |
| Numbers of Blades | 10 |
| Power | air-cooled diesel engine |
| Stubble Height | 8-15 cm(adjustsble) |
| Crushing Rate | ＞98% |

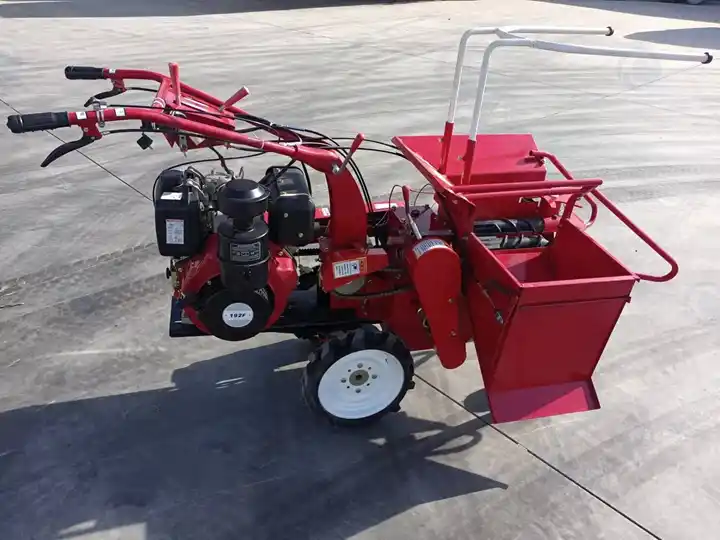

TZ-125
| Model | TZ-125 |
| Size | 1820*800*1190mm |
| Weight | 265kg |
| Working Speed | 0.75-1.44km/h |
| Fuel Consumption of Unit Working Area | ≤10kg/hm² |
| Hours of Productivity | 0.067-0.1 hectare/h |
| Numbers of Blades | 10 |
| Power | suitable for walking tractors |
| Stubble Height | 8-15 cm(adjustsble) |
| Crushing Rate | ＞98% |
The size of this small corn harvester is 1820 * 800 * 1190 mm. The weight is 265 kg. The maximum working speed can reach 1.4 km/h. The productivity per hour is 0.067-0.1 hectares. Therefore, it can meet most of the small area work requirements.
How does a corn harvester work?
The one row corn picker has an engine. It can pick corn and store it in a basket. At the same time, the corn straw was crushed. The tires are powered by a gearbox. Two harvesting wheels and one crushing blade group are driven by another gearbox. When the machine advances, it will pull the corn straw into the header. Then the breaking blade group will break the corn straw

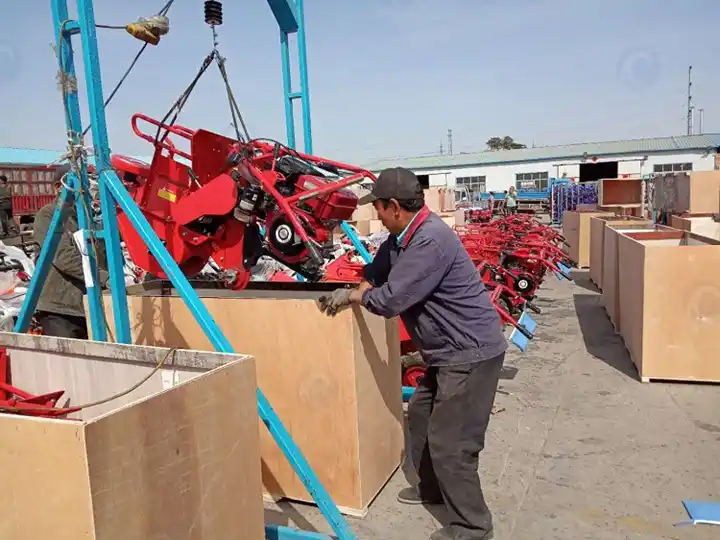

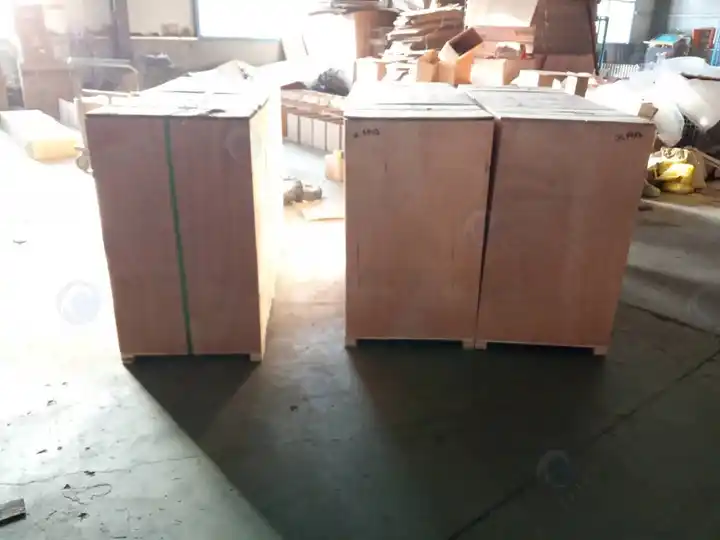

Delivery Cases of Single-Row Corn Harvester
One row corn picker for sale
In Taizy corn machinery factory, we have one row corn picker for sale. In addition, we have many rows of corn harvesters for sale. You can choose according to your own needs. If you have other special needs, we can also provide customized services for you. Most importantly, the price of one row corn picker is affordable. So it’s cost-effective whether you use it or rent it.
Related Machine Recommendations
At the same time, we also offer corn threshers and corn grits-making machines. If you are interested in further processing corn, feel free to consult us for more details.
