Taizy maize planter is an agricultural machine specially used for planting corn. It can plant multiple rows of corn seeds at the same time.

In Taizy machinery, we have different types of planters for you to choose from, such as 1 row, 2 rows, 3 rows, 4 rows, 5 rows, 6 rows, and 8 rows corn planters.

In addition, this corn planting machine can realize simultaneous sowing and fertilization.

At present, the machine has been exported to Nigeria, the Philippines, Pakistan, Congo, India, and other countries.

video of the corn planting machine

Advantages of Taizy maize planter for tractor

  1. Taiziy corn planting equipment has two main functions: seeding and fertilizing. This saves time and effort in fertilization.
  2. The machine can seed multiple rows of corn at the same time, with high work efficiency.
  3. The row spacing, plant spacing, and sowing depth of the machine are adjustable. Therefore, it can adapt to different sowing needs.
  4. We have many models of maize planters for sale, such as 2-row, 3-row, 4-row, 5-row, 6-row and more.
  5. The machine is easy to operate. You only need to operate the direction of the tractor.

The parameters of the maize planting machine

Modelo2BYSF-22BYSF-32BYSF-42BYSF-52BYSF-62BYSF-8
Tamanho1.57×1.3×1.2m1.57×1.7×1.2m1.62×2.35×1.2m1.62×2.75×1.2m1.62×3.35×1.2m1.64×4.6×1.2m
Row234568
Row spacing428-570mm428-570mm428-570mm428-570mm428-570mm428-570mm
Plant spacing140mm-280mm140mm-280mm140mm-280mm140mm-280mm140mm-280mm140mm-280mm
Ditching depth60-80mm60-80mm60-80mm60-80mm60-80mm60-80mm
Fertilization depth60-80mm60-80mm60-80mm60-80mm60-80mm60-80mm
Sowing depth30-50mm30-50mm30-50mm30-50mm30-50mm30-50mm
The capacity of the fertilizer tank18.75Lx218.75Lx318.75Lx418.75Lx518.75Lx618.75Lx8
The capacity of the seedbox8.5×28.5×38.5×48.5×58.5×68.5×8
Peso150kg200kg295kg360kg425kg650kg
Matched power12-18hp15-25hp25-40hp40-60hp50-80hp75-100hp
Linkage3-pointed3-pointed3-pointed3-pointed3-pointed3-pointed
corn planting machine parameter

Above are the technical data of our 6 hot selling corn planters. You can see the matching horsepower, weight, fertilizer tank capacity, seed box capacity, and other information of each machine from this table.

If you want to know more information about this machine, please send us an email.

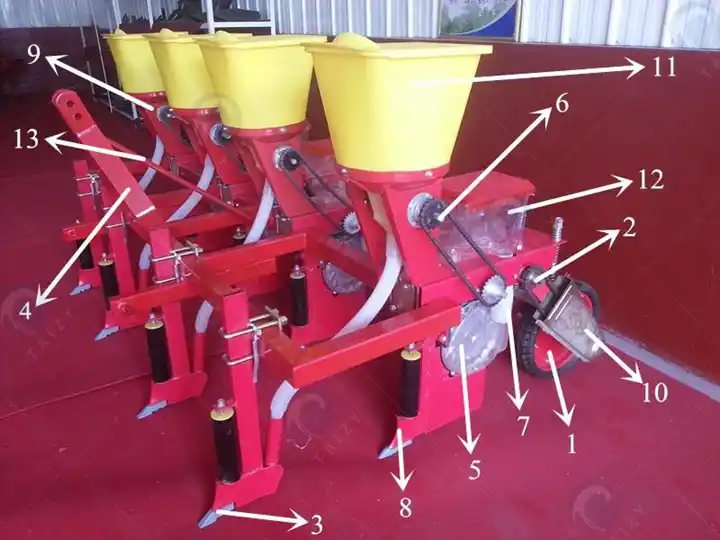

Structure of the maize planter

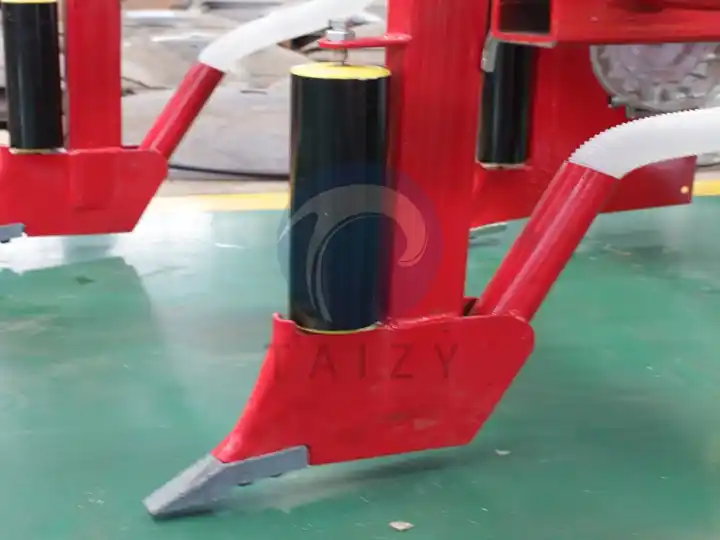

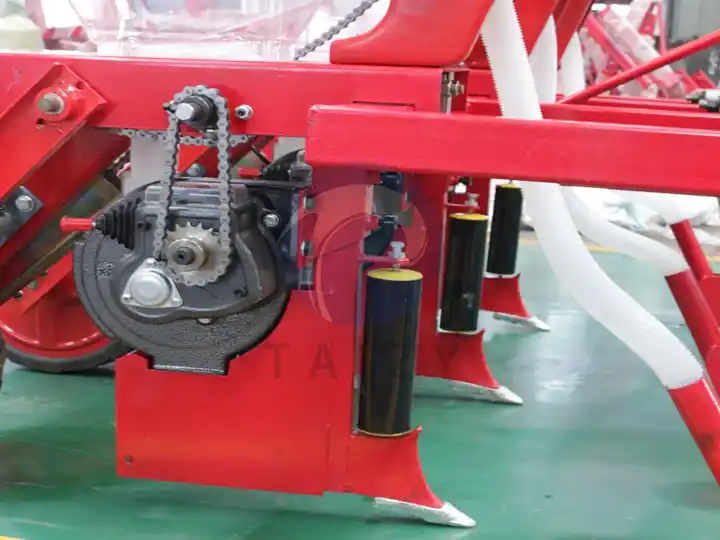

The main structure of the maize planter includes the seedbox, ditcher, seed metering device, fertilizer box, fertilizer metering device, soil covering, and pressing device.

How does corn planter work?

In the process of machine seeding, the main power of the corn seeder comes from the rear power output shaft of the tractor.

Under the traction of the tractor, the trencher opens the soil ditch for sowing and fertilization within the preset depth.

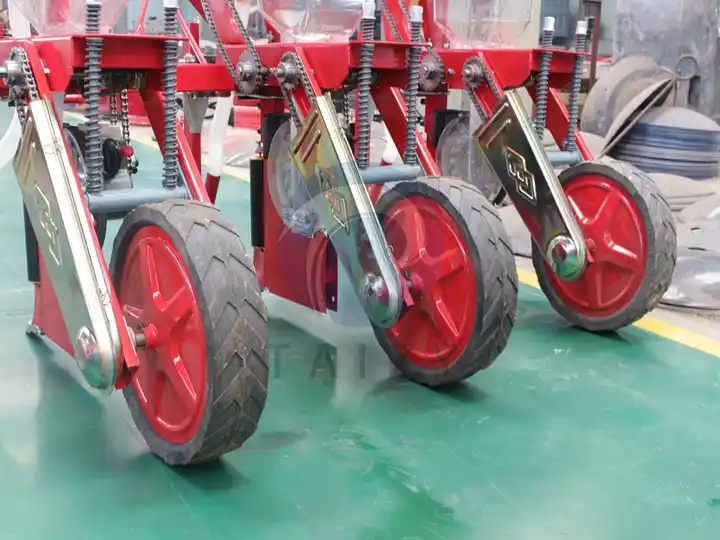

Under the effect of friction, the ground wheel rolls continuously during travel, driving the seed metering device and fertilizer metering device to work.

They can discharge seeds and fertilizer into the soil through different discharge ports.

Then, the soil covering device and compaction device is used to cover and compact the soil.

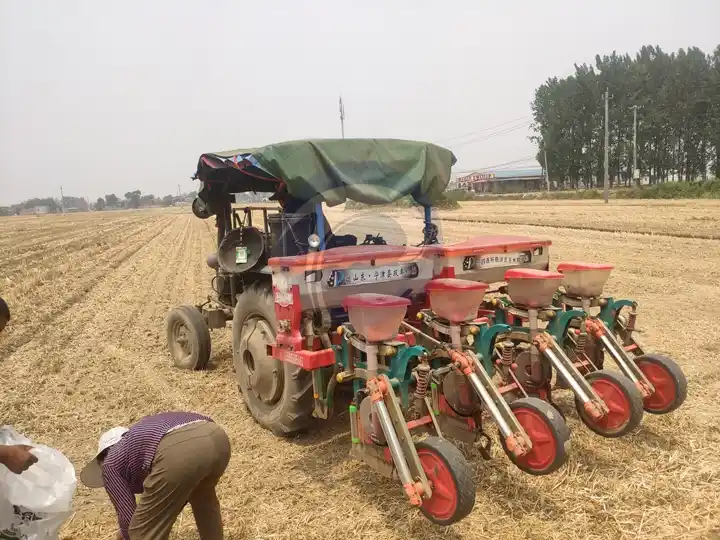

the working picture of corn planting equipment
the working picture of corn planting equipment

Working video of 3-row corn planter

video process of the 3-row seed planter

How to use maize planter correctly?

Check the machine

The weeds and soil on the machine shall be cleaned before the machine works. And check whether the rotating part is normal.

Seed and fertilizer filling

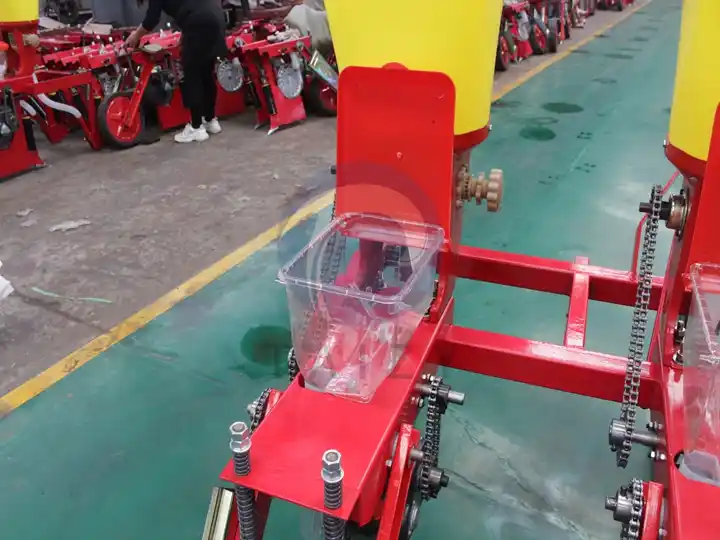

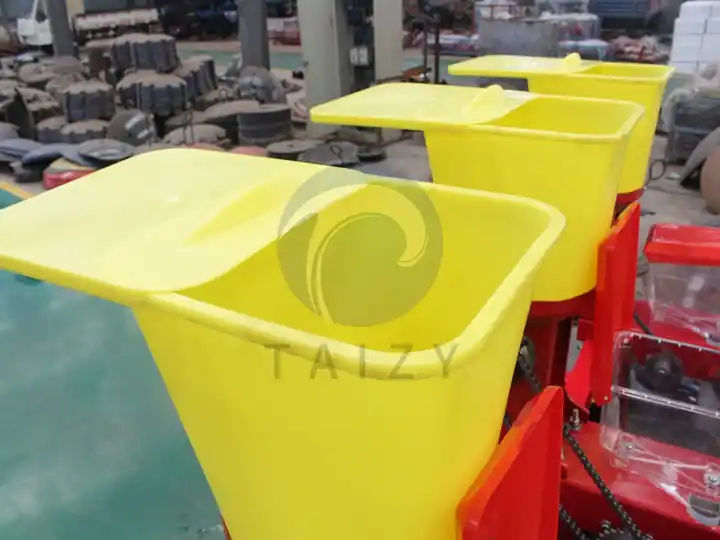

Put the seeds into a transparent container and put the fertilizer into a yellow container. The seeds shall be added at least to cover the inlet of the seed metering box. This can ensure smooth seeding.

Trial broadcast in advance

To ensure the sowing quality, we must adhere to trial sowing for 20 meters before large-scale sowing. Observe the operation of the maize planter. After confirming that the seeding requirements are met, large-area seeding can be carried out.

Drive in a straight line at a constant speed

When sowing, pay attention to moving forward in a straight line at a constant speed and do not stop at once or stop halfway. This can avoid replay and missed broadcasts.

Observe frequently

When planting, you should always observe the work of the seed dispenser, ditcher, mulching device, and transmission mechanism.

In case of blockage, clay, the entanglement of grass, loose seed coverage, etc., it shall be removed in time. Repairing, lubricating, or clearing tangled grass must be done after stopping.

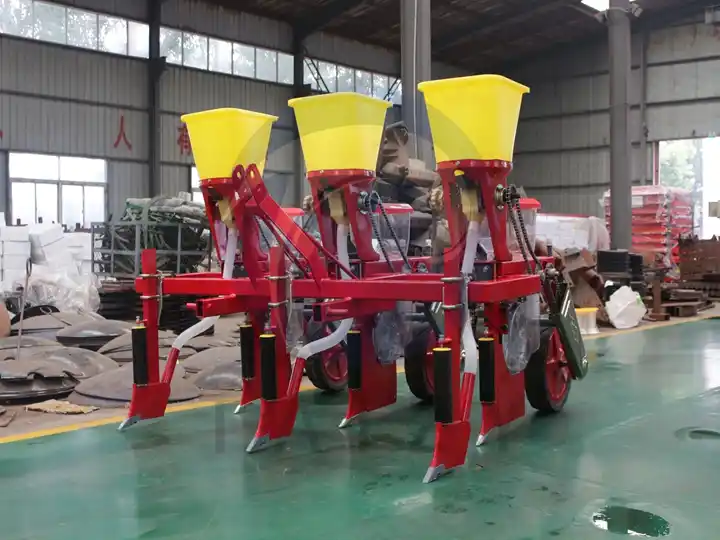

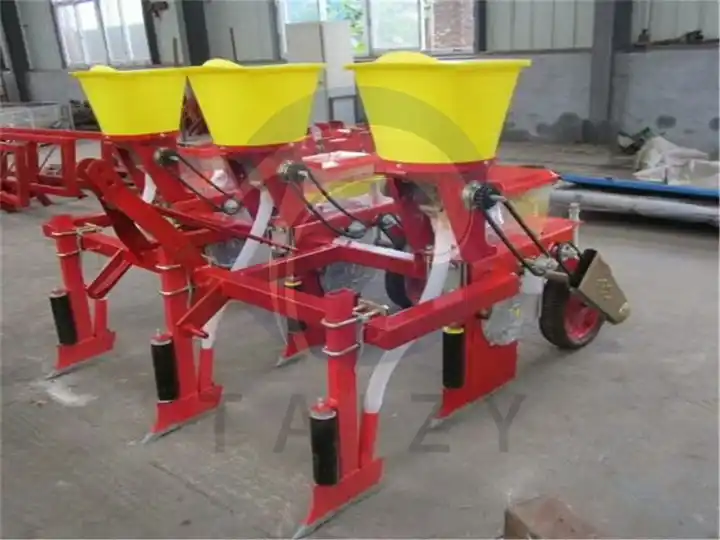

maize planting machine
maize planting machine

What is the best corn planter?

Every buyer wants to choose the best corn planter. But the best may not be right for you. The selection of the machine needs to be based on your actual situation.

For example, some people say that an 8-row machine is the best. But the bigger the machine, the more expensive it will be. You may not be able to afford it. Moreover, if the land area is not large, it is not suitable for large machines.

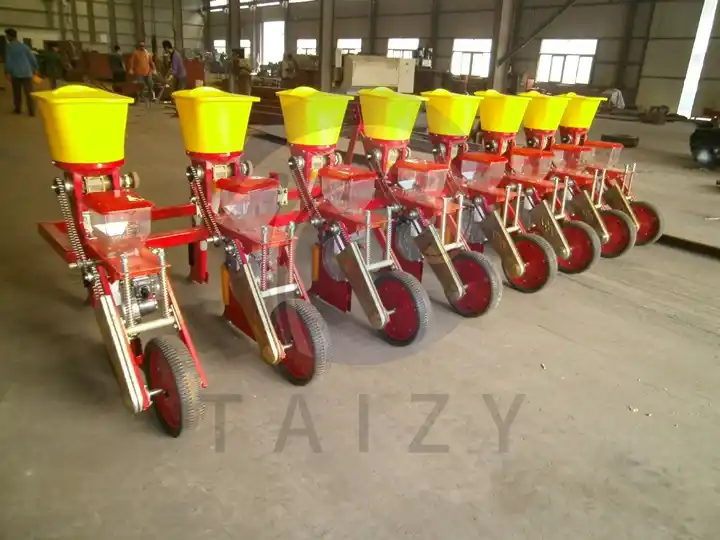

8-row maize planter
8-row maize planter

There are a variety of different types of maize planters on the market today, and you may not know which machine to choose.

If you have questions about this, please contact us through the pop-up window in the lower right corner. Our professional staff will reply to you promptly.

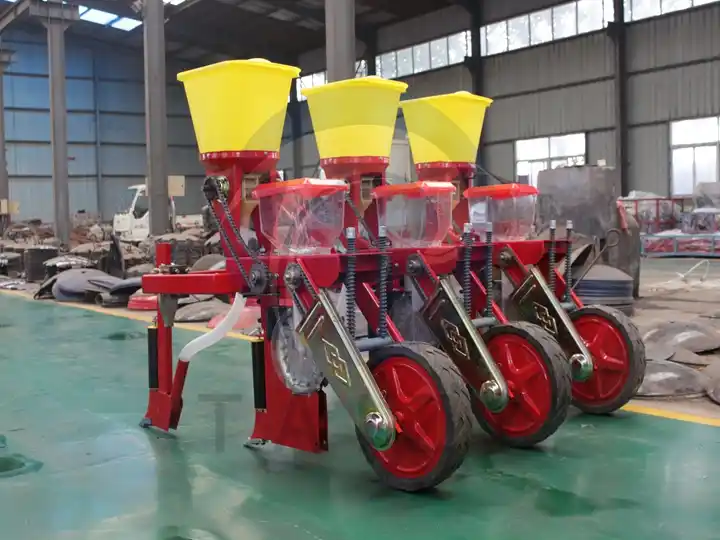

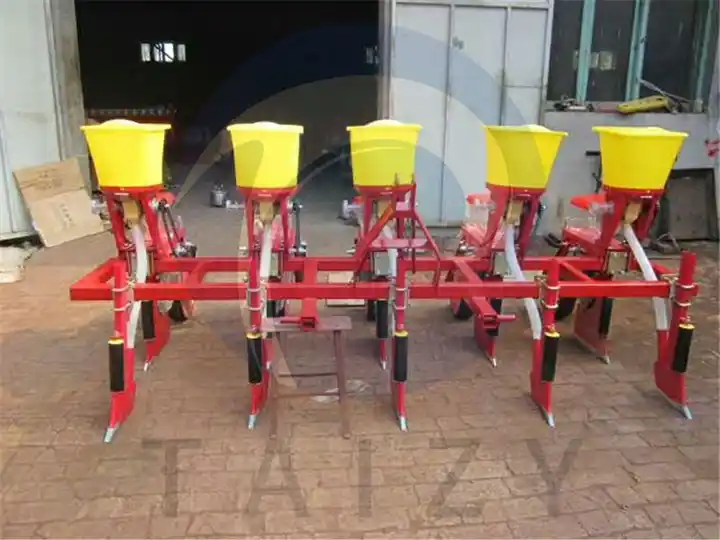

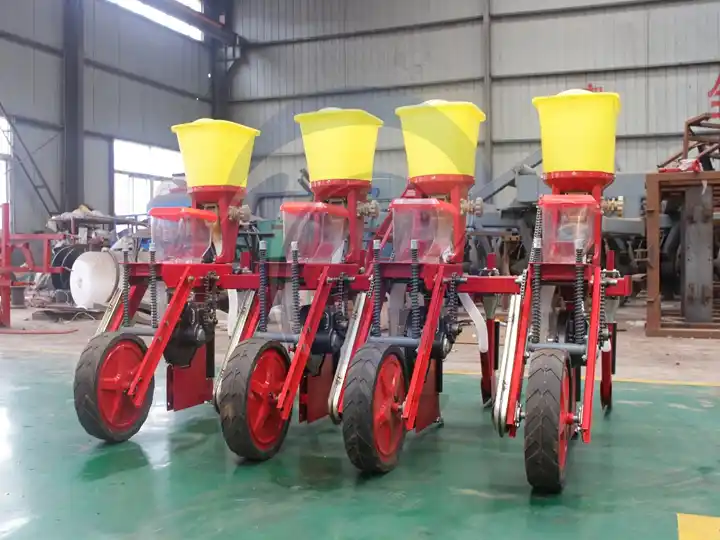

multi row corn planter in our factory
multi-row corn planter in our factory

Maize planter for sale in Ghana

Last month, the maize planter and moedor de milho ordered by a Ghanaian customer from our company were shipped.

This client has a farm in Ghana. He wanted to buy a suitable machine to grow corn and soybeans. He saw our machine while browsing the Internet. The size and capabilities of the machine were exactly what he wanted.

Through communication with our sales representative, he decided to buy our machine. He received the maize planter and corn milling machine a week ago. He expressed his satisfaction with our machines.

FAQs

What crops are corn seeders used for?

Corn seeder is not only suitable for corn, but also for soybeans, peanuts, and other crops by changing the seeding disc.

How do you adjust seeding depth and row spacing?

Seeding depth and row spacing can be achieved by adjusting the dials on the planter.

What is the seeding efficiency of a maize planting machine?

This depends on the type and model of the planter.

Why do seeds overlap or get missed when sowing?

This can be caused by a clogged seed tray or seed tube, an improperly adjusted planter, or traveling too fast.

Can maize planters be adapted to different types of soil?

Most corn planters can adapt to different types of soil.
